Material Code
B = brass.
If steel (S) or stainless steel (SS) is required, please contact our sales dept.
Generel information
- High pull-ot resistance.
- Ideal where jack-out loading is unavoidable.
- Can carry high loads in weak plastics.
How to order
Type + Thread + Alt. Length (if applicable) + Material Code

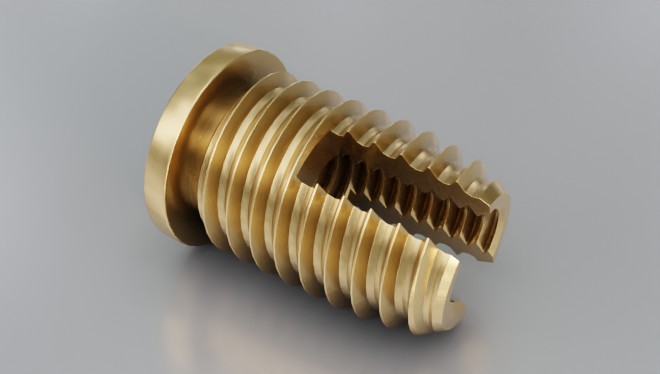

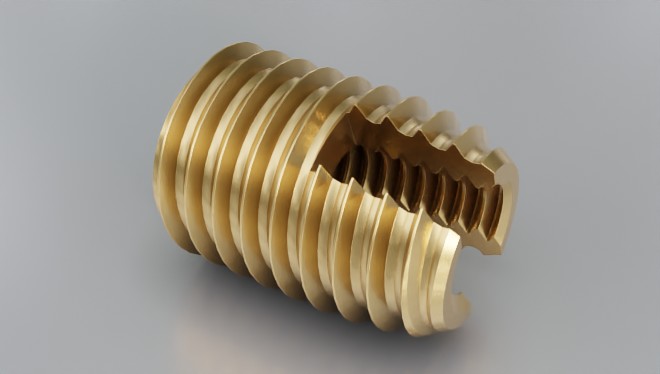

Example: Thread-M4-B or ThreadH-M4-B

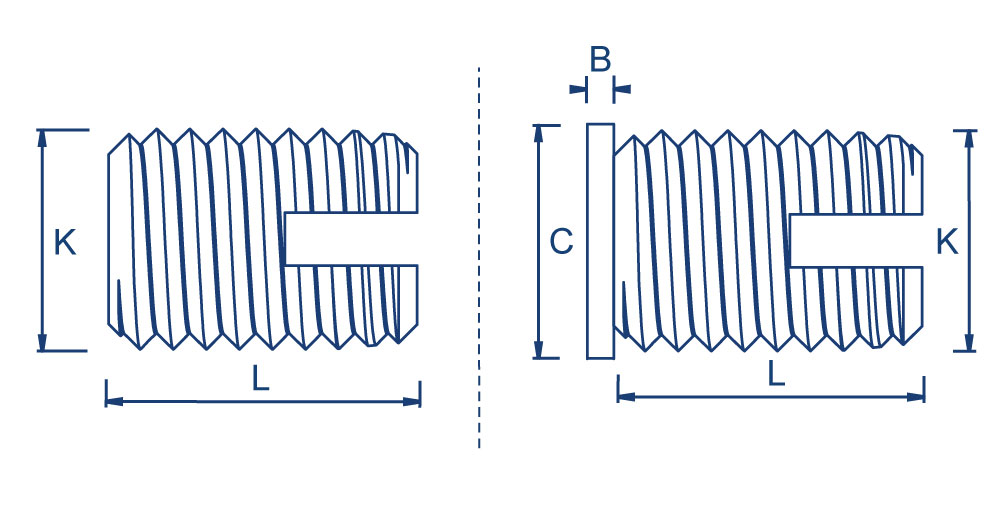

| Thread | L mm |
B mm |
C mm |
K mm |
Rec. Hole Size -0.00 / +0.10 Thermoplastic mm |
Rec. Hole Size -0.00 / +0.10 Thermosets mm |
Min. Wall Thickness mm |
Bemærk! | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M2.5 | 6.0 | 0.58 | 6.0 | 4.5 | 4.0 - 4.1 | 4.1 - 4.3 | Pre-production tests | |||||||||||||||||||||||
| M3 | 6.0 | 0.58 | 6.5 | 5.0 | 4.5 - 4.6 | 4.6 - 4.8 | Pre-production tests | |||||||||||||||||||||||
| M3.5 | 8.0 | 0.73 | 7.5 | 6.0 | 5.2 - 5.4 | 5.5 - 5.7 | Pre-production tests | |||||||||||||||||||||||
| M4 | 8.0 | 0.89 | 8.0 | 6.5 | 5.8 - 5.9 | 6.0 - 6.2 | Pre-production tests | |||||||||||||||||||||||
| M5 | 10.0 | 1.06 | 9.5 | 8.0 | 7.1 - 7.2 | 7.3 - 7.6 | Pre-production tests | |||||||||||||||||||||||
| M6 | 14.0 | 1.32 | 12.0 | 10.0 | 8.6 - 8.8 | 9.0 - 9.4 | Pre-production tests | |||||||||||||||||||||||
| M8 | 15.0 | 1.32 | 14.0 | 12.0 | 10.6 - 10.8 | 11.0 - 11.4 | Pre-production tests | |||||||||||||||||||||||
| M10 | 18.0 | 1.57 | 16.0 | 14.0 | 12.6 - 12.8 | 13.0 - 13.4 | Pre-production tests | |||||||||||||||||||||||
