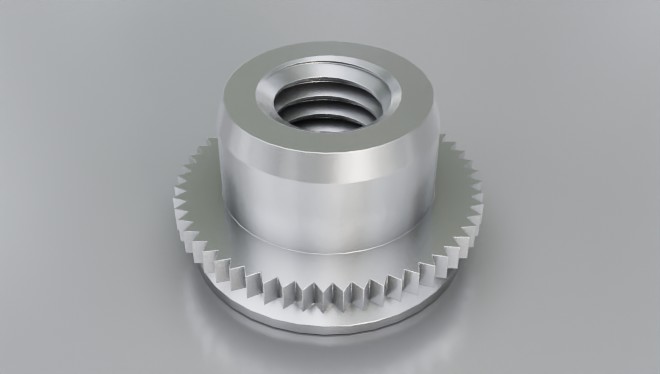

SF-FE or SF-FEO

SF-FE/SF-FEO

Material Code

Stainless steel / black dry film lubricant = SF-FE or SF-FEO

How to order

Type + Thread
Example: SF-FE-M5 or SF-FEO-M4

Thread

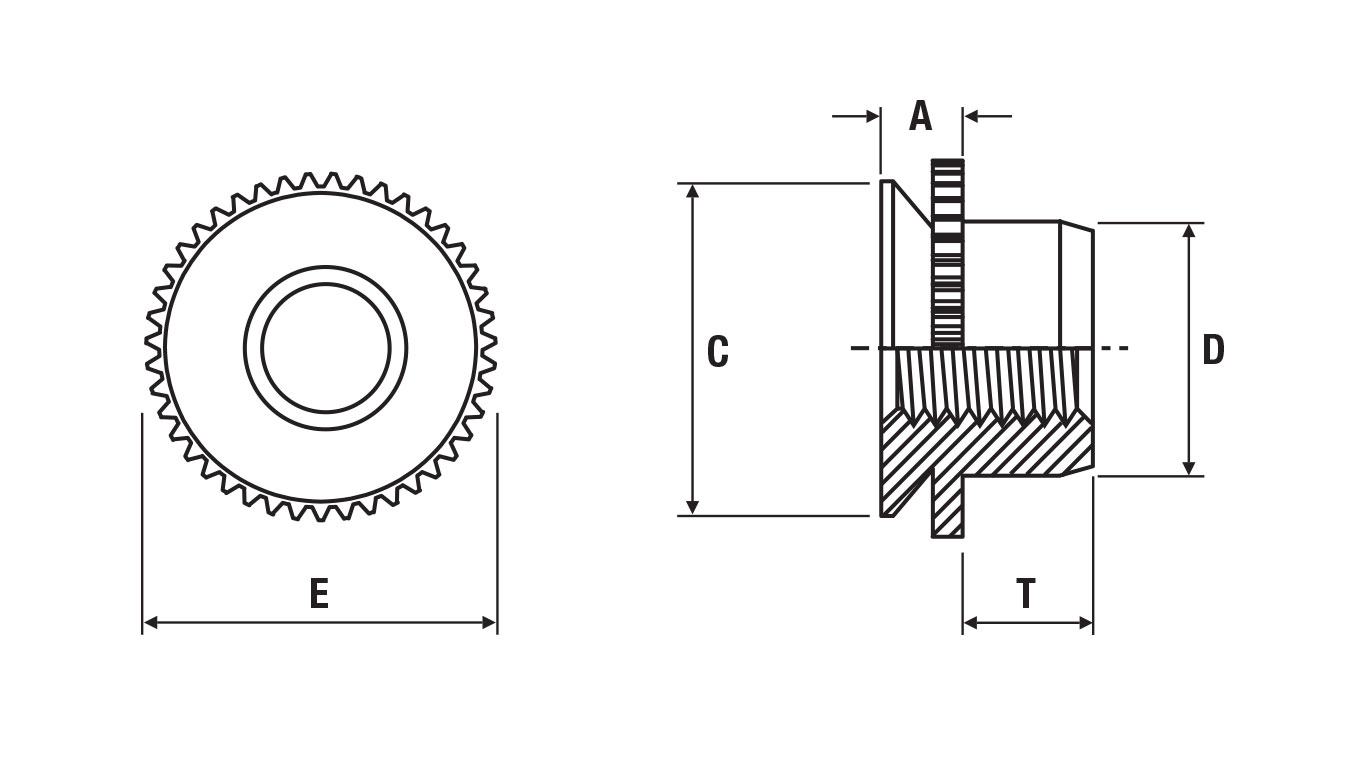

A
max.
mm



C
- 0.13
mm

 D
max.
mm		 E
±0.13
mm		 T
+0.4
mm

Sheet
Thickness
mm

 Rec. Hole Size
+0.08
mm		 Distance
Centre Hole
to Sheet Edge
min.
mm		 Please note!
  SF-FE SF-FEO         SF-FE SF-FEO
M3 1.53 1.02 4.37 3.96 4.88 1.9 1.50-1.78 0.99-1.14 4.39 3.6
M4 1.53 1.02 7.37 5.23 8.17 2.55 1.50-1.78 0.99-1.14 7.39 5.2
M5 1.53 1.02 7.37 6.48 8.17 3.05 1.50-1.78 0.99-1.14 7.39 5.2
M6 1.53 1.02 8.72 7.72 9.74 3.3 1.50-1.78 0.99-1.14 8.74 7.1
