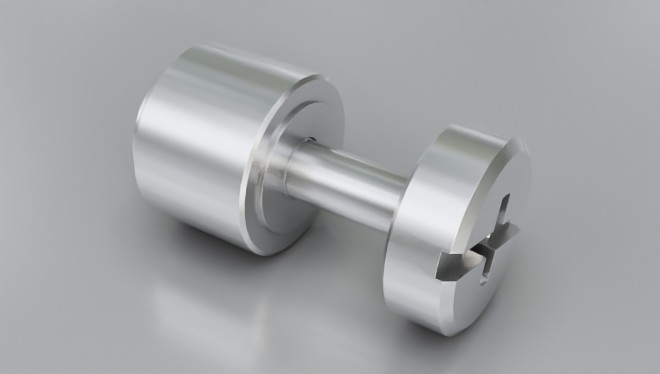

Type: SF-PFHV

SF-PFHV

Material Code

Steel/Bright Nickel = SN

How to order

Type + Thread + Screw Code
Example: SF-PFHV-M3-1

Thread M3 M4 Please note!
Screw Code 0 1 0 1

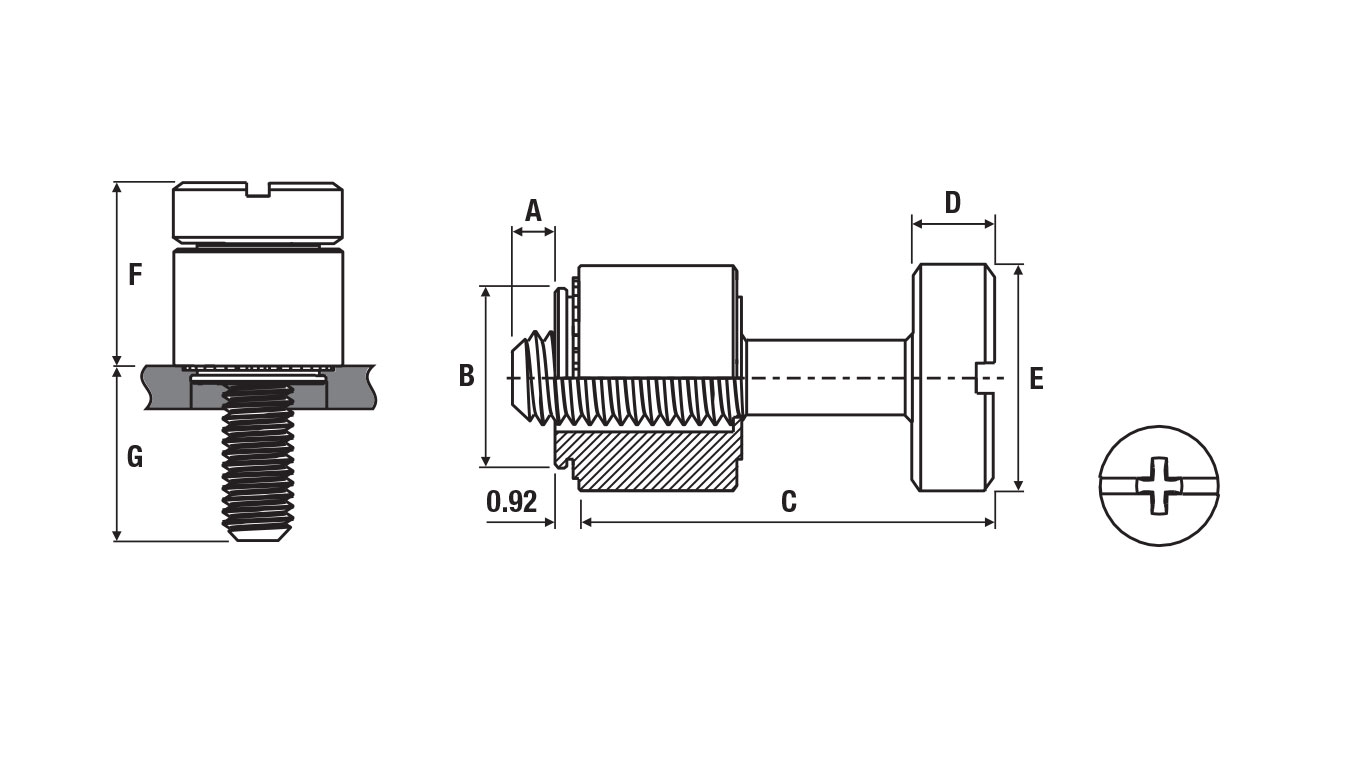

A (shank) max. mm 0 1.9 0 2.7
B max. mm 5.49 6.38
C nom. mm 11.25 14.10
D ±0.13 mm 2.03 2.79
E ±0.25 mm 6.95 7.85
F nom. mm 6.69 8.50
G ±0.64 mm 5.55 7.56 6.59 9.39
Sheet Thickness min. mm 0.92 0.92
Rec. Hole Size +0.08 mm 5.5 - 5.58 6.4 - 6.48
Distance Centre Hole to Sheet Edge min. mm 5.8 6.7
