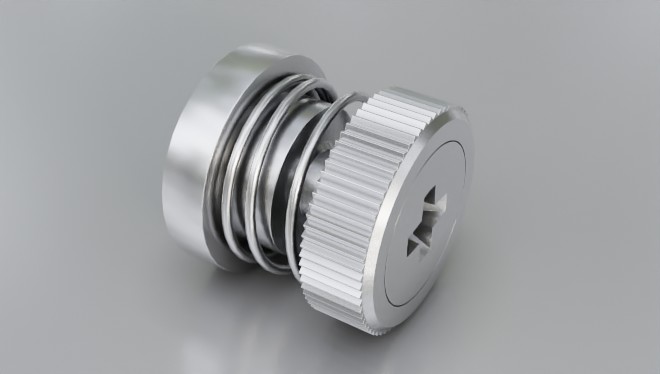

SF-PF50

SF-PF50

Material Code

Steel/Nickel = SF-PF50

How to order

Type + Thread + Screw Code
Example: SF-PF50-M4-1

Thread M3 M4 M5 Please note!
Screw Code 0 1 0 1 0 1

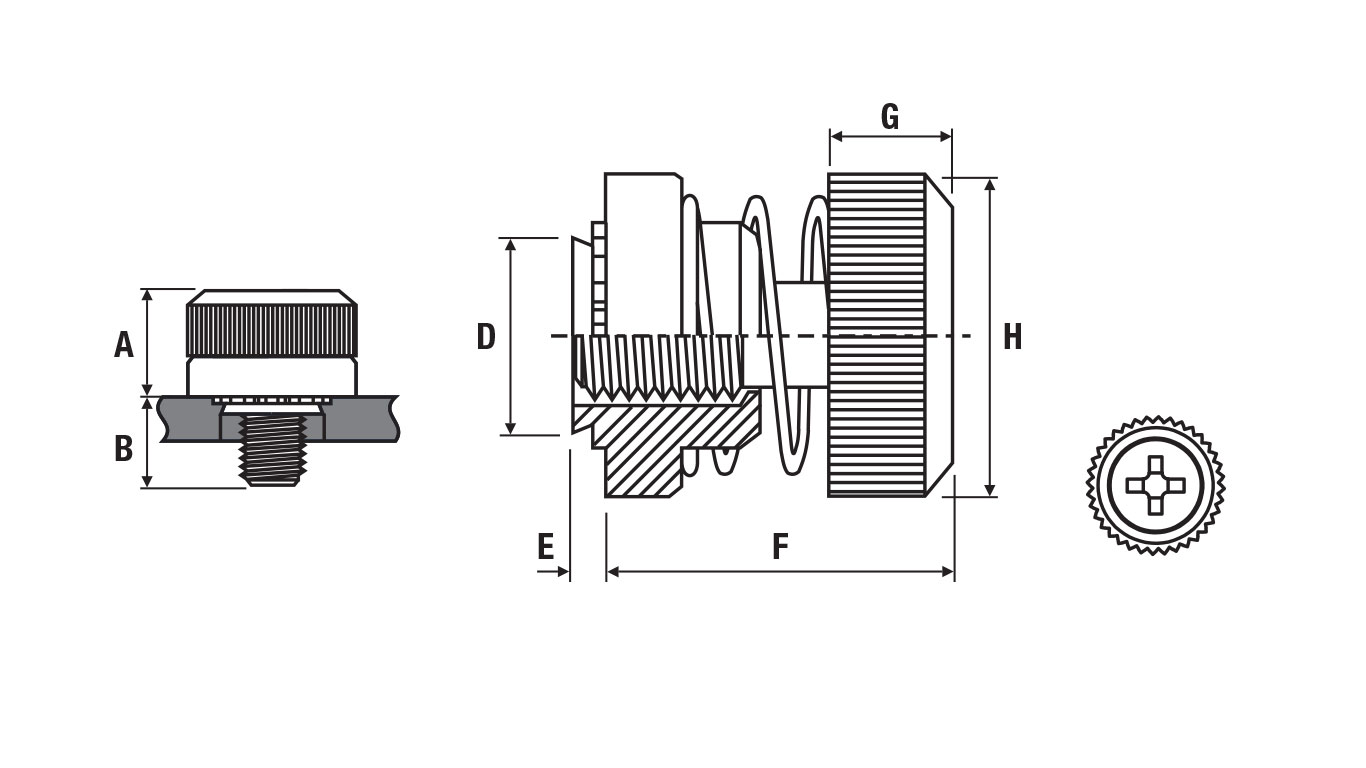

A max. mm 8.64 8.64 9.15
B ±0.64 mm 5.84 7.37 5.84 7.37 5.84 7.37
D max. mm 5.48 6.38 7.98
E +0.4/-0.13 mm 0.77 0.77 0.77
F nom. mm 13.21 13.46 13.46
G ±0.2 mm 5.26 5.51 5.72
H +0.4 / -0.13 mm 10.3 11.9 13.5
Sheet Thickness min. mm 0.8 0.8 0.8
Rec. Hole Size +0.08 mm 5.5 - 5.8 6.4 - 6.48 8.0 - 8.08
Distrance Centre Hole to Sheet Edge min. mm 6.6 7.4 8.4
