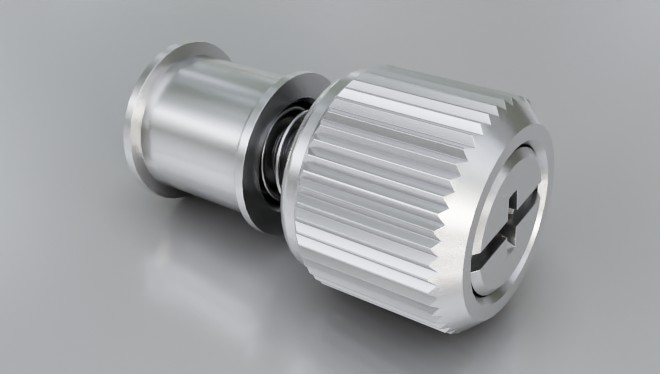

Type: SF-PF11

SF-PF11

Material Code

Steel/nickel (retainer)-Aluminum (knob)-Stainless steel (screw & spring) = SF-PF11

How to order

Type + Thread + Screw Length Code
Example: SF-PF11-M3-0 or SF-PF11-M6-2

Thread M3 M4 M5 M6 Please note!
Screw Length Code 0 1 2 0 1 2 0 1 2 2

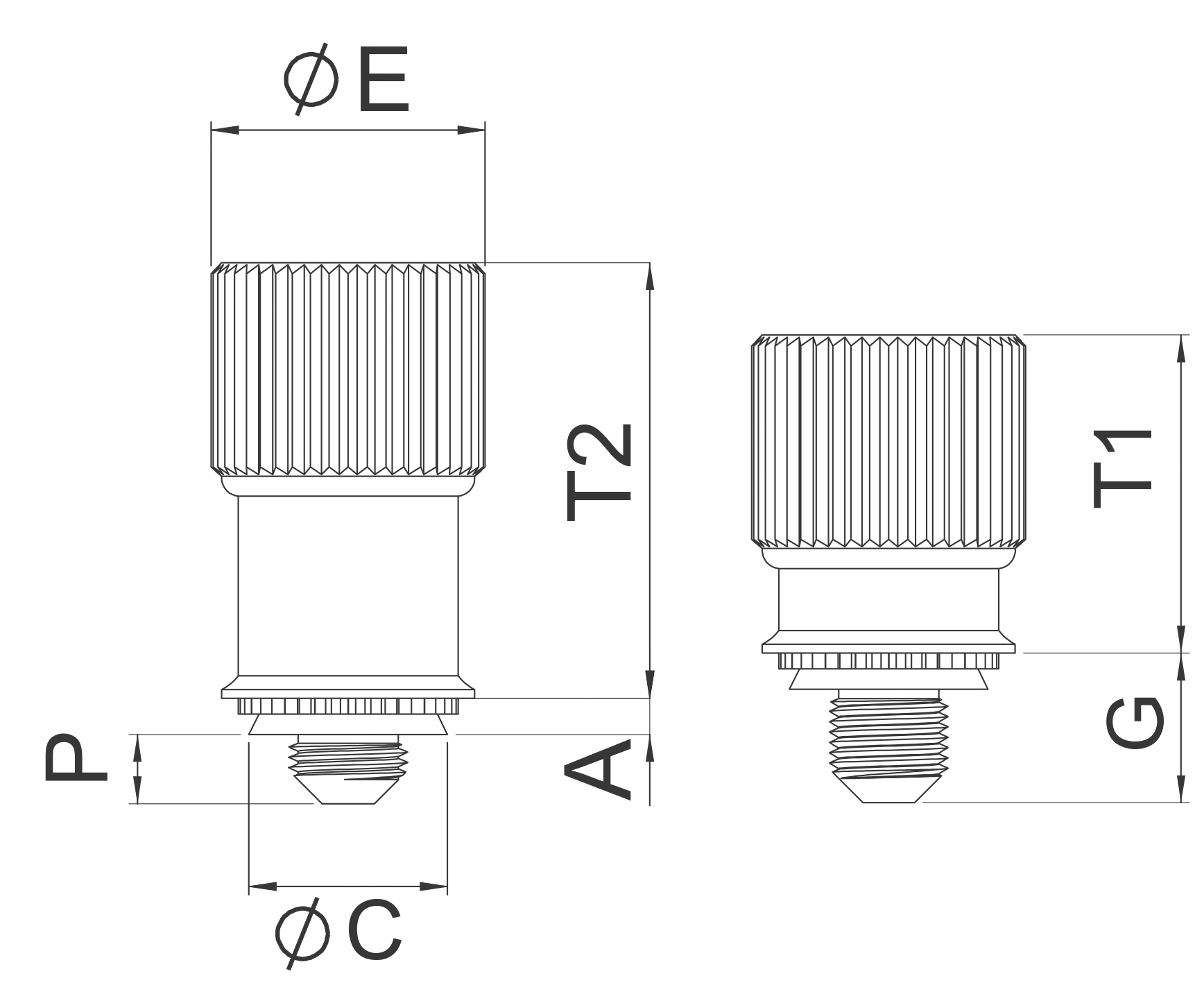

A max. mm 0.92 0.92 0.92 0.92
C max. mm 5.54 7.90 7.90 9.50
E ±0.25 mm 10.59 13.06 13.06 14.61
G ±064 mm 4.32 5.84 7.37 5.84 7.37 8.89 5.84 7.37 8.89 10.41
P ± 0.64 mm 0 1.52 3.05 0 1.52 3.05 0 1.52 3.05 3.05
T1 nom. mm 7.87 11.43 11.43 13.46
T2 nom. mm 11.43 16.26 16.26 20.07
Driver Size PH1 PH2 PH2 PH3
Sheet Thickness min. mm 0.92 0.92 0.92 0.92
Distance Centre Hole to Sheet Edge min. mm 7.11 8.38 8.38 11.68
