Material Code
B = brass
Generel information
- Rounded knurls, reducing stress when installed in sensitive amorphous thermoplastics.
- Double ended - assists automatic feeding.
- High torque resistance.
- Self-aligning - assists installation.
How to order
Type + Thread + Alt. Length (if applicable) + Material Code

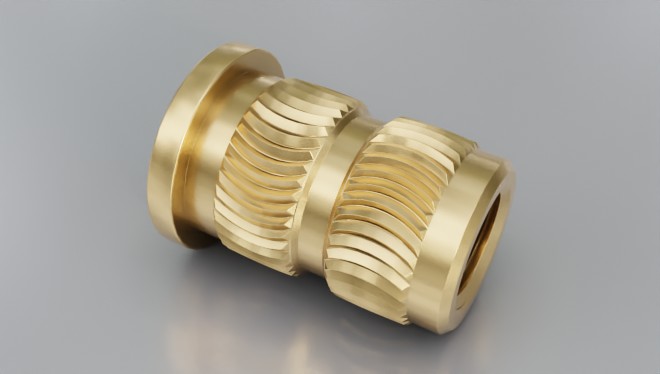

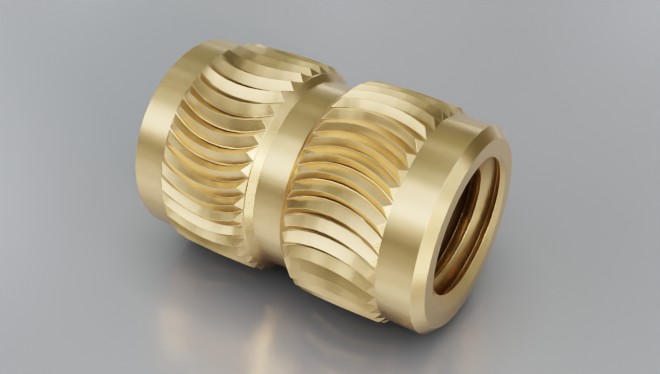

Example: Heat-M5-B or HeatH-M3-B

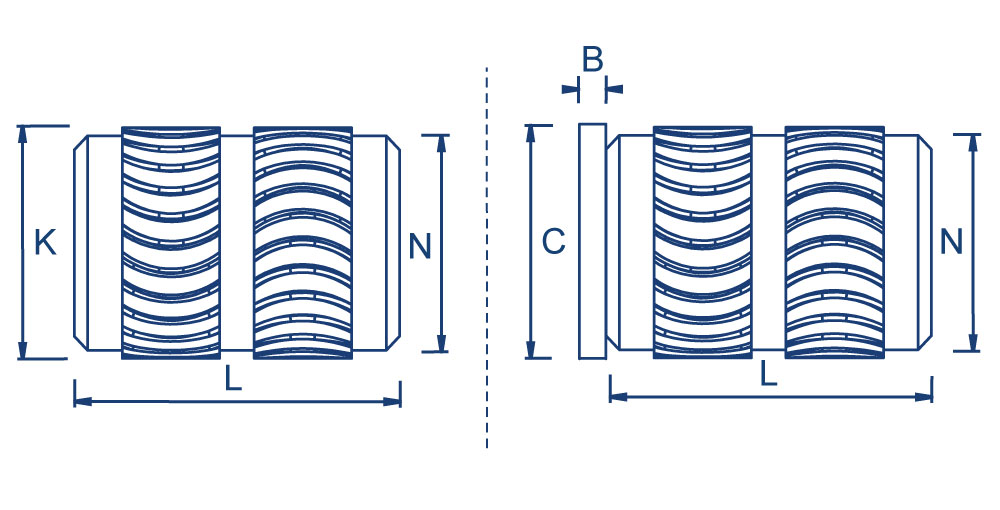

| Thread | L mm |
B mm |
C mm |
K mm |
N mm |
Rec. Hole Size -0.00 / +0.10 |
Min. Wall Thickness mm |
Please note! | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M2 | 3.9 | 0.51 | 4.8 | 3.5 | 3.1 | 3.2 | 1.4 | |||||||||||||||||||||||
| M2.5 | 5.8 | 0.58 | 5.5 | 4.4 | 3.9 | 4.0 | 1.8 | |||||||||||||||||||||||
| M3 | 5.8 | 0.58 | 5.5 | 4.4 | 3.9 | 4.0 | 1.8 | |||||||||||||||||||||||
| M3.5 | 7.1 | 0.74 | 6.4 | 5.2 | 4.7 | 4.8 | 2.1 | |||||||||||||||||||||||
| M4 | 8.1 | 0.89 | 7.1 | 6.1 | 5.5 | 5.6 | 2.4 | |||||||||||||||||||||||
| M5 | 9.5 | 1.07 | 7.9 | 6.9 | 6.3 | 6.4 | 2.8 | |||||||||||||||||||||||
| M6 | 12.7 | 1.32 | 9.5 | 8.5 | 7.9 | 8.0 | 3.6 | |||||||||||||||||||||||
| M8 | 12.7 | 1.32 | 11.1 | 10.0 | 9.5 | 9.6 | 5.0 | |||||||||||||||||||||||
