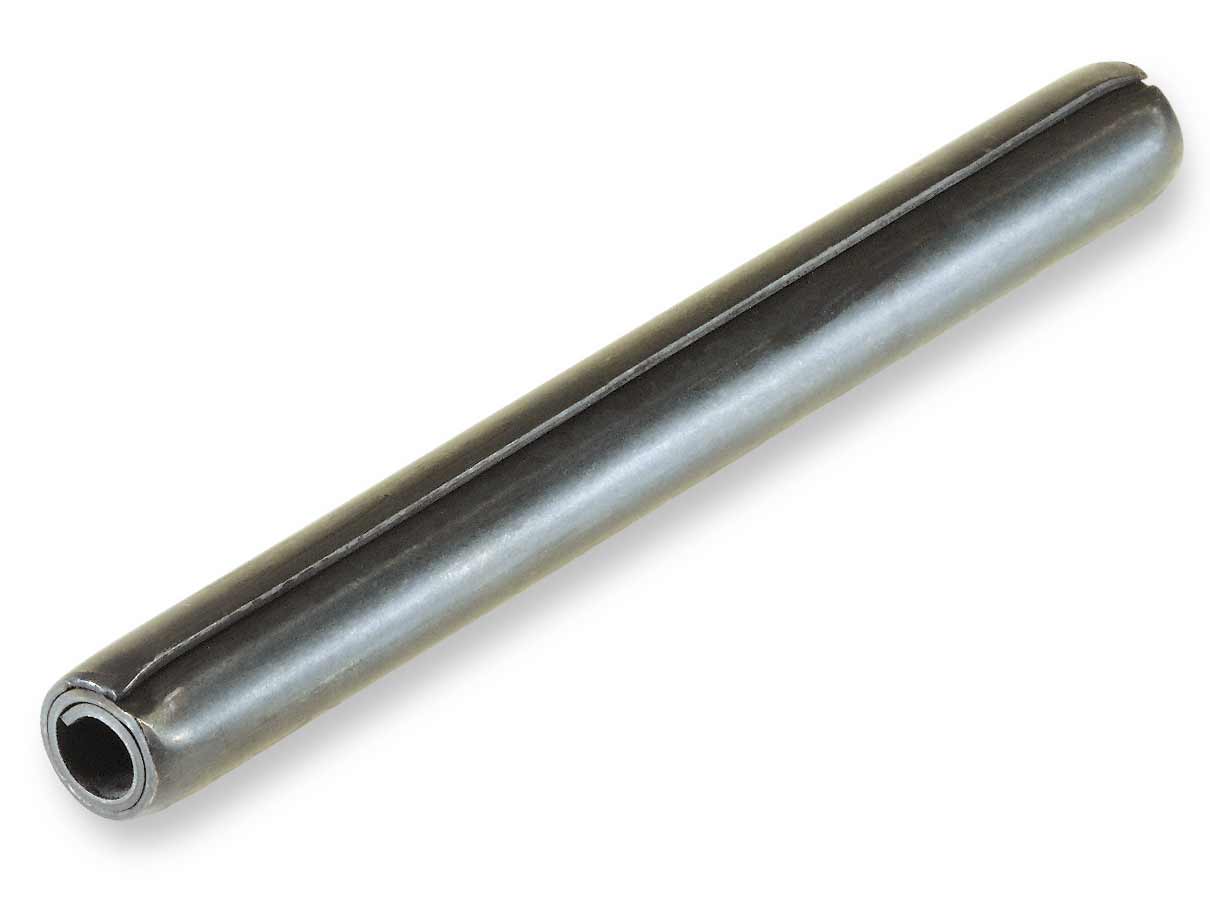

Lengths
Standard Lengths: 10mm-200mm.
For customized lengths, please contact our Sales Dept.
Material Code
Materials:
Spring Steel / High Carbon Steel / Stainless Steel
Finish:
Oiled (other finishes on request)
Generel information
Pins with a nominal diameter of 10mm or greater may be delivered with one chamfer.
How to order
Article Code when ordering:
Nominal Diameter x Length - DIN number
(ex. 4x15-DIN8750)
All data is correct to the best of our knowledge, however Headland cannot be held responsible for any errors or omissions.

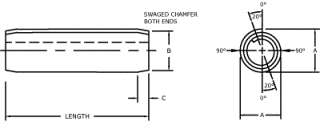

| Nominal Diameter |
Diameter A |
Chamfer Length |
Recommended Hole Size |
Double Shear kN Min. | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | Min. mm | Max. mm | Min. mm | Max. mm | Min. mm | Max. mm | Carbon Steel & 420SS | 302/304SS | ||||||||||||||||||||||
| 1 | 1.05 | 1.15 | 0.3 | 0.95 | 1.0 | 1.04 | 0.60 | 0.45 | ||||||||||||||||||||||
| 1.5 | 1.62 | 1.73 | 0.5 | 1.40 | 1.5 | 1.60 | 1.45 | 1.05 | ||||||||||||||||||||||
| 2 | 2.13 | 2.25 | 0.7 | 1.90 | 2.0 | 2.10 | 2.50 | 1.90 | ||||||||||||||||||||||
| 2.5 | 2.65 | 2.78 | 0.7 | 2.40 | 2.5 | 2.60 | 3.90 | 2.90 | ||||||||||||||||||||||
| 3.0 | 3.15 | 3.30 | 0.9 | 2.90 | 3.0 | 3.10 | 5.50 | 4.20 | ||||||||||||||||||||||
| 3.5 | 3.67 | 3.84 | 1.0 | 3.40 | 3.5 | 3.62 | 7.50 | 5.70 | ||||||||||||||||||||||
| 4 | 4.20 | 4.40 | 1.1 | 3.90 | 4.0 | 4.12 | 9.60 | 7.60 | ||||||||||||||||||||||
| 5 | 5.25 | 5.50 | 1.3 | 4.85 | 5.0 | 5.12 | 15.00 | 11.50 | ||||||||||||||||||||||
| 6 | 6.25 | 6.50 | 1.5 | 5.85 | 6.0 | 6.12 | 22.00 | 16.80 | ||||||||||||||||||||||
| 8 | 8.30 | 8.63 | 2.0 | 7.80 | 8.0 | 8.15 | 39.00 | 30.00 | ||||||||||||||||||||||
| 10 | 10.35 | 10.80 | 2.5 | 9.75 | 10.0 | 10.15 | 62.00 | 48.00 | ||||||||||||||||||||||
| 12 | 12.40 | 12.85 | 3.0 | 11.70 | 12.0 | 12.20 | 89.00 | 67.00 | ||||||||||||||||||||||
| 16 | 16.45 | 17.00 | 4.0 | 15.60 | 16.0 | 16.30 | 155.00 | N/A | ||||||||||||||||||||||
