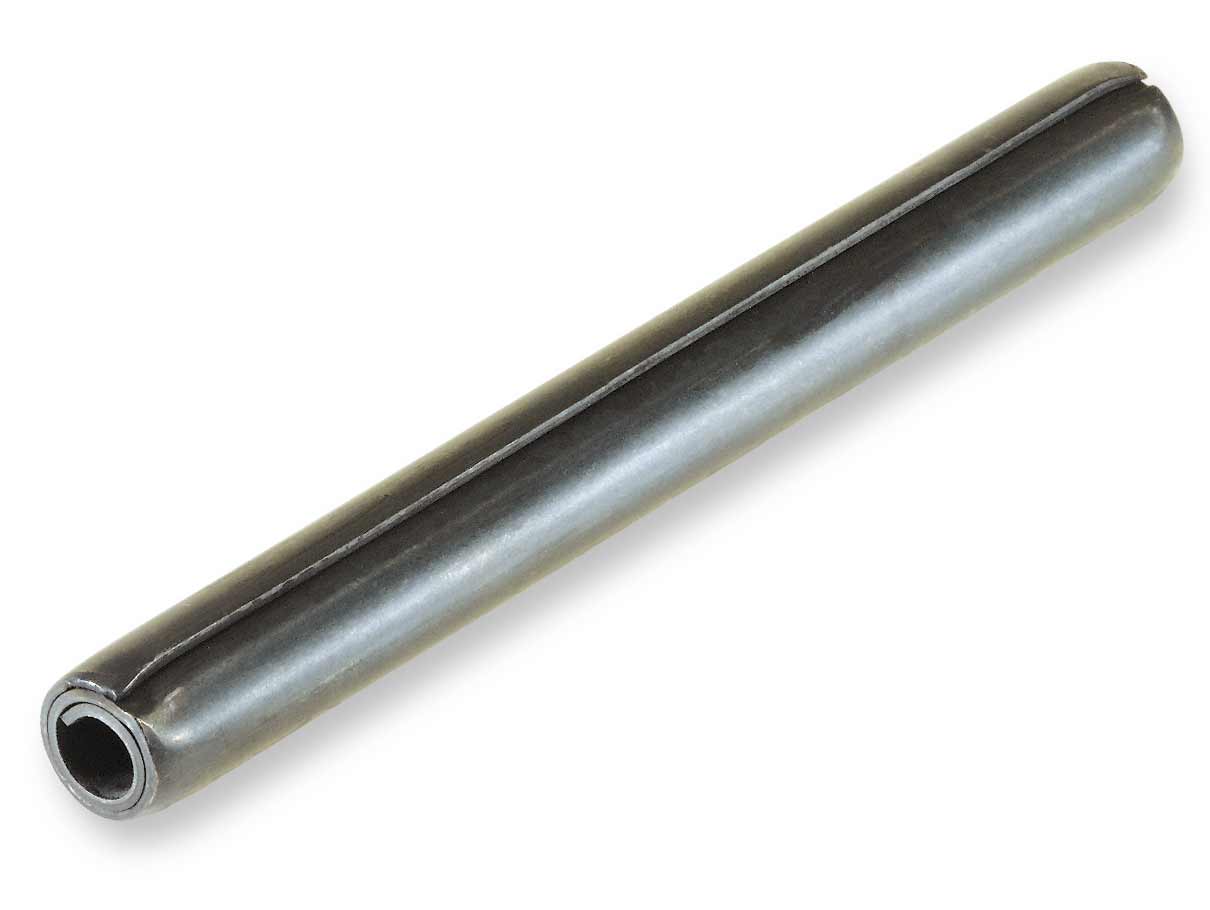

Coiled Spring Pin Heavy Duty DIN8748/ISO7344

Lengths

Standard Lengths:  10mm-200mm.

For customized lengths, please contact our Sales Dept.

Material Code

Materials:
Spring Steel / High Carbon Steel
Stainless Steel (Chrome AISI 420 & Nickel AISI 302/304SS)

Finish:
Oiled (other finishes on request)

Generel information

Pins with a nomial diameter of 10mm or greater may be delivered with one chamfer.

How to order

Article Code when ordering:
Normal Diameter x Length - DIN number

(ex. 2.5x20-DIN8748)

All data is correct to the best of our knowledge, however Headland cannot be held responsible for any errors or omissions.

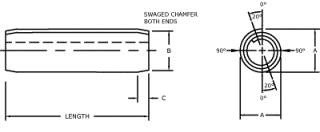

Nominal
Diameter		 Diameter
A		 Chamfer
Length		 Recommended
Hole Size		 Double Shear
kN min.
mm Min. mm Max. mm Min. mm Max.mm Min.mm Max.mm Carbon Steel & 420SS 302/304SS
1 N/A N/A 0.3 0.95 1.0 1.04 N/A N/A
1.5 1.61 1.71 0.5 1.40 1.5 1.60 1.90 1.45
2 2.11 2.21 0.7 1.90 2.0 2.10 3.50 2.50
2.5 2.62 2.73 0.7 2.40 2.5 2.60 5.50 3.80
3 3.12 3.25 0.9 2.90 3.0 3.10 7.60 5.70
3.5 3.64 3.40 1.0 3.40 3.5 3.62 10.00 7.60
4 4.15 4.30 1.1 3.90 4.0 4.12 13.50 10.00
5 5.15 5.35 1.3 4.85 5.0 5.12 20.00 15.50
6 6.18 6.40 1.5 5.85 6.0 6.12 30.00 23.00
8 8.25 8.55 2.0 7.80 8.0 8.15 53.00 41.00
10 10.30 10.65 2.5 9.75 10.0 10.15 84.00 64.00
12 12.30 12.75 3.0 11.70 12.0 12.20 120.00 91.00
16 16.40 16.90 4.0 15.60 16.0 16.30 210.00 N/A
