Tension Pin Heavy Duty DIN1481/ISO8752

Lengths

Standard Lengths: 10mm - 200mm

For customized lengths, please contact our Sales Dept.

Material Code

Materials:
Spring Steel / High Caron Steel / Stainless Steel

Finish:
Oiled (other finishes on request)

Generel information

Pins with a nominal diameter of 10mm or greater may be delivered with one chamfer.

How to order

Article Code when ordering:
Nominal Diameter x Length - DIN number

(ex.: 16x60-DIN1481)

All data is correct to the best of our knowledge, however, Headland cannot be held responsible for any errors or omissions.

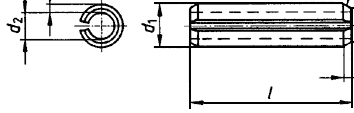

Nominal
Diameter

O.D. d1
before Insertion

 I.D. d2
before Insertion		 Chamfer
Length		 Wall
Thickness		 Recommended
Hole Size		 Double Shear
kN Min.
mm Min. mm Max. mm mm Min. mm Max. mm mm Min. mm Max. mm Carbon Steel Only
1.0 1.20 1.30 0.80 0.15 0.35 0.20 1.00 1.10 0.70
1.5 1.70 1.80 1.10 0.25 0.45 0.30 1.50 1.60 1.58
2.0 2.30 2.40 1.50 0.35 0.55 0.40 2.00 2.10 2.82
2.5 2.80 2.90 1.80 0.40 0.60 0.50 2.50 2.60 4.38
3.0 3.30 3.50 2.10 0.50 0.70 0.60 3.00 3.10 6.32
3.5 3.80 4.00 2.30 0.60 0.80 0.75 3.50 3.65 9.06
4.0 4.40 4.60 2.80 0.65 0.85 0.80 4.00 4.15 11.24
4.5 4.90 5.10 2.90 0.80 1.00 1.00 4.50 4.65 15.36
5.0 5.40 5.60 3.40 0.90 1.10 1.00 5.00 5.15 17.54
6.0 6.40 6.70 4.00 1.20 1.40 1.20 6.00 6.15 26.04
8.0 8.50 8.80 5.50 2.00 2.40 1.50 8.00 8.25 42.75
10.0 10.50 10.80 6.50 2.00 2.40 2.00 10.00 10.25 70.16
12.0 12.50 12.80 7.50 2.00 2.40 2.50 12.00 12.30 104.10
13.0 13.50 13.80 8.50 2.00 2.40 2.50 13.00 13.30 115.10
14.0 14.50 14.80 8.50 2.00 2.40 3.00 14.00 14.30 144.70
16.0 16.50 16.80 10.50 2.00 2.40 3.00 16.00 16.30 171.00
18.0 18.50 18.90 11.50 2.00 2.40 3.50 18.00 18.30 222.50
20.0 20.50 20.90 12.50 3.00 3.40 4.00 20.00 20.30 280.60
21.0 21.50 21.90 13.50 3.00 3.40 4.00 21.00 21.30 298.20
25.0 25.50 25.90 15.50 3.00 3.40 5.00 25.00 25.30 438.50
28.0 28.50 28.90 17.50 3.00 3.40 5.50 28.00 28.30 542.60
30.0 30.50 30.90 18.50 3.00 3.40 6.00 30.00 30.30 631.40
32.0 32.50 32.90 20.50 3.00 3.60 6.00 32.00 32.30 684.00
35.0 35.50 35.90 21.50 3.00 3.60 7.00 35.00 35.30 859.00
38.0 38.50 38.90 23.50 4.00 4.60 7.50 38.00 38.30 1003.00
40.0 40.50 40.90 25.50 4.00 4.60 7.50 40.00 40.30 1068.00
45.0 45.50 45.90 28.50 4.00 4.60 8.50 45.00 45.30 1360.00
50.0 50.50 50.90 31.50 4.00 4.60 9.50 50.00 50.30 1685.00
