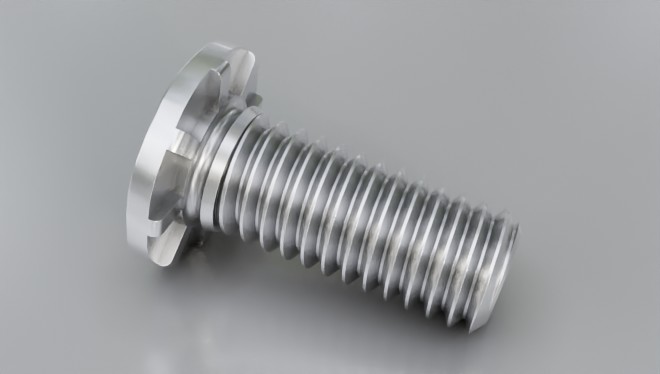

Lengths
8/15/20/25/30/35/40/50
Material Code
Steel/zink = SF-HFE
How to order
Type + Thread + Length
Example: SF-HFE-M5-20

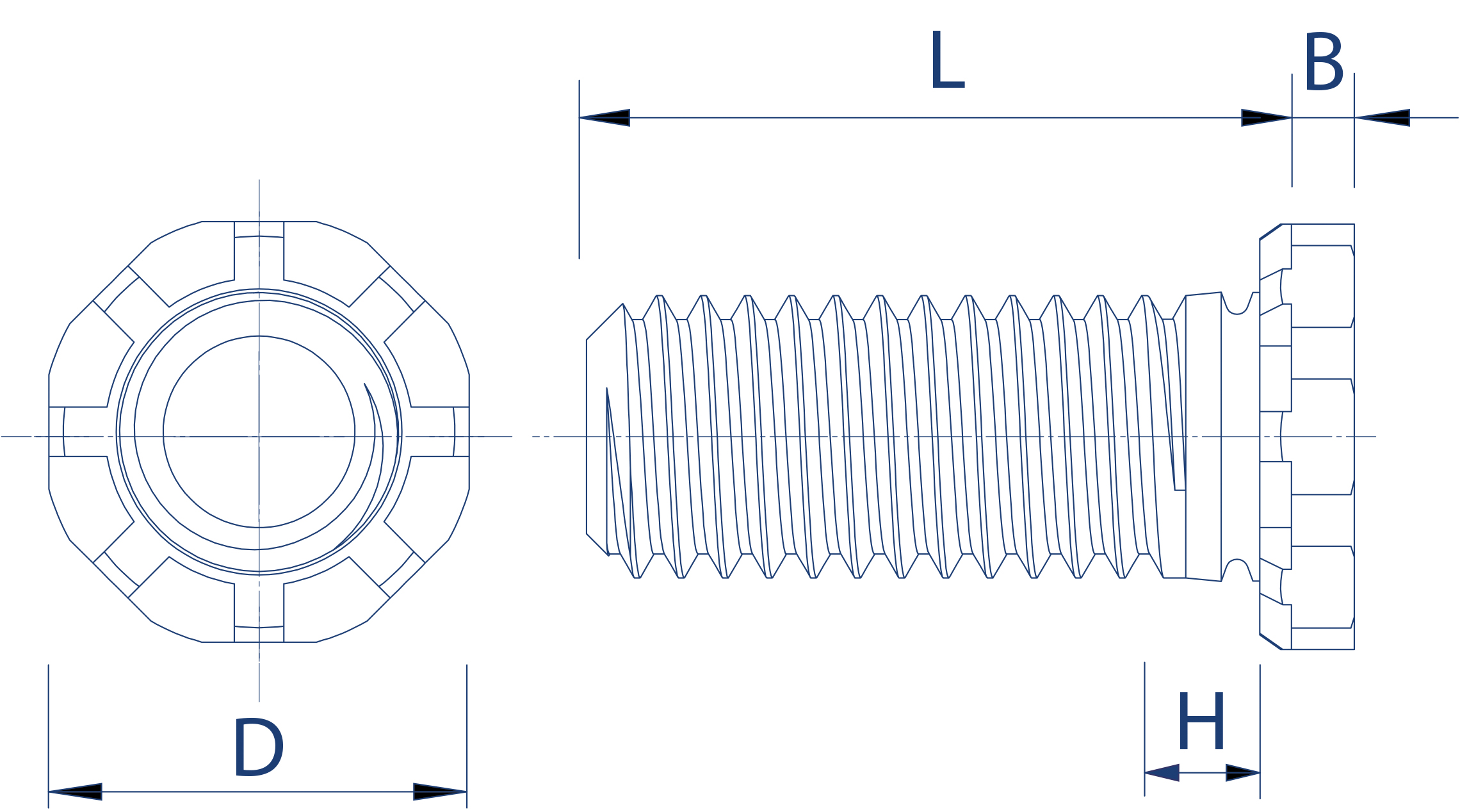

| Thread | B max. mm |
D ±0.25 mm |
H max. mm |
L ±0.4 mm |
Sheet Thickness min. mm |
Rec. Hole Size +0.13 mm |
Distance Centre Hole to Sheet Edge min. mm |
Please note! | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M5 | 1.35 | 9.60 | 2.60 | 8/15/20 | 1.0 | 5.0 | 10.00 | |||||||||||||||||||||||
| M6 | 1.52 | 11.35 | 2.80 | 15/20/25/30 | 1.0 | 6.0 | 11.50 | |||||||||||||||||||||||
| M8 | 2.13 | 15.30 | 3.30 | 20/25/30/35/40/50 | 1.5 | 8.0 | 14.50 | |||||||||||||||||||||||
